What is a Polymer Capacitor? Construction, Working Principle, Types, Advantages & Applications

Introduction

A polymer capacitor is a type of electrolytic capacitor that uses a solid conductive polymer as its electrolyte instead of a liquid electrolyte. These capacitors offer low equivalent series resistance (ESR), high reliability, long service life, and excellent electrical performance. Due to their compact size and superior characteristics, polymer capacitors are widely used in modern electronic devices such as computers, power supplies, communication equipment, and industrial electronics.

Electrolytic capacitors are available in several types, and polymer capacitors are an excellent choice for applications that require high reliability, compact size, stable capacitance, and long operational life. Aluminum polymer capacitors use a conductive polymer as the electrolyte instead of the conventional liquid electrolyte. They offer several advantages, including:

ADVERTISEMENT

• Low Equivalent Series Resistance (ESR)
• Long service life
• High reliability
• Compact size
• Stable capacitance over time
• Excellent resistance to voltage and temperature variations
• Superior aging characteristics

Polymer capacitors are commonly available in capacitance values ranging from 2.2 µF to 470 µF, depending on the design and application.

What is a Polymer Capacitor?

A polymer capacitor is an electrolytic capacitor that utilizes a solid conductive polymer as its electrolyte instead of a liquid electrolyte. These capacitors are commonly used as replacements for conventional electrolytic capacitors whenever the operating voltage is within their rated limits.

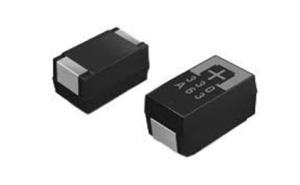

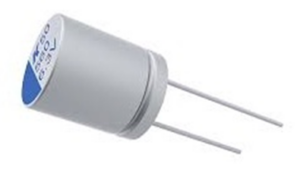

Polymer Capacitor

Although certain polymer capacitors are available with voltage ratings up to 100 V DC, most standard polymer capacitors operate at voltages up to 35 V DC. Compared with traditional electrolytic capacitors, polymer capacitors offer lower ESR, longer operating life, improved safety, and better overall electrical performance.

Construction of Polymer Capacitor

A polymer capacitor consists of two aluminum foil electrodes separated by an electrolyte-soaked separator, where the conductive polymer serves as the cathode material. The basic construction includes:

• Aluminum anode foil
• Conductive polymer cathode
• Separator paper
• Aluminum casing
• External terminals

After assembling the electrodes and separator, the capacitor is rolled into a cylindrical shape and enclosed within an aluminum housing. Most polymer capacitors are manufactured using Surface Mount Technology (SMT), allowing them to occupy minimal PCB space.

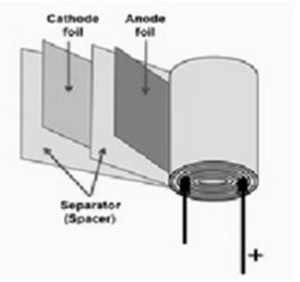

Polymer Capacitor Construction

Unlike conventional electrolytic capacitors, polymer capacitors generally do not require pressure relief vents because solid polymer electrolytes do not generate significant internal gas during failure.

Working Principle of Polymer Capacitor

A polymer capacitor operates by using a solid conductive polymer as the electrolyte. In conventional electrolytic capacitors, liquid or gel electrolytes gradually evaporate over time, leading to reduced capacitance and eventual failure. Polymer capacitors eliminate this problem by replacing the liquid electrolyte with a solid conductive polymer. Because the electrolyte cannot dry out, polymer capacitors provide:

• Long operational life
• Stable electrical characteristics
• Low ESR
• Excellent ripple current capability
• High reliability

Types of Polymer Capacitors

Polymer capacitors are available in several types based on their construction and electrolyte design.

1. Layered Polymer Aluminum Capacitors

Layered polymer aluminum capacitors use conductive polymer as the electrolyte and are primarily designed for surface-mount applications.

Specifications:

• Voltage Range: 2 V to 25 V
• Capacitance Range: 2.2 µF to 560 µF
• Extremely low ESR (as low as 3 mΩ)

Layered Polymer Aluminum Capacitors

These capacitors are commonly used in handheld electronic devices and compact electronic circuits where low-profile components are required.

2. Wound Polymer Aluminum Capacitors

These capacitors use a wound aluminum foil structure combined with conductive polymer technology.

Specifications:

• Voltage Range: 2.5 V to 100 V
• Capacitance Range: 3.3 µF to 2700 µF
• Typical ESR as low as 5 mΩ

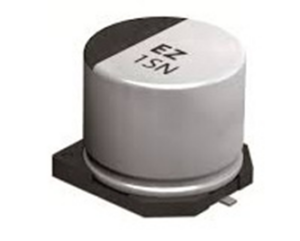

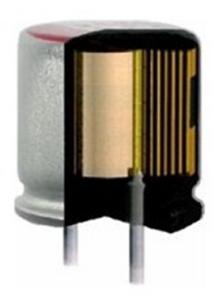

Wound Polymer Aluminum Capacitors

Although larger than layered polymer capacitors, they still offer excellent electrical performance and can also be manufactured in surface-mount packages.

3. Polymer Tantalum Capacitors

Polymer tantalum capacitors utilize tantalum as the anode material while employing conductive polymer as the electrolyte.

Specifications:

• Voltage Range: 1.8 V to 35 V
• Capacitance Range: 2.7 µF to 680 µF
• Very low ESR (around 5 mΩ)

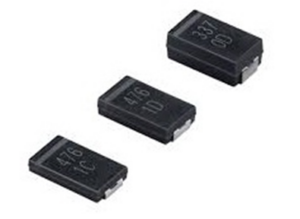

Polymer Tantalum Capacitors

These capacitors are extremely compact and are housed in molded plastic packages.

4. Polymer Hybrid Aluminum Capacitors

Hybrid polymer capacitors combine liquid electrolyte with conductive polymer technology. This design offers excellent conductivity, high capacitance, and improved voltage handling capability.

Specifications:

• Voltage Range: 25 V to 80 V
• Capacitance Range: 10 µF to 330 µF
• ESR Range: 20 mΩ to 120 mΩ

Polymer Hybrid Aluminum Capacitors

Although their ESR is higher than other polymer capacitor types, they provide higher voltage ratings and excellent ripple current capability.

Advantages of Polymer Capacitors

• Long service life.
• High capacitance in compact packages.
• Excellent reliability.
• Very low Equivalent Series Resistance (ESR).
• Low impedance over a wide frequency range.
• High ripple current capability.
• Stable performance under varying voltage and temperature conditions.
• Reduced acoustic noise compared to ceramic capacitors.
• Wide operating temperature range, typically from -55°C to +125°C.

Disadvantages of Polymer Capacitors

• Higher leakage current than some other capacitor types.
• Performance may be affected under extremely high temperature and humidity conditions.
• Generally more expensive than conventional aluminum electrolytic capacitors.
• Lower maximum voltage ratings compared to traditional electrolytic capacitors.

Applications of Polymer Capacitors

• Computer motherboards and server motherboards.
• Power supply filtering circuits.
• Voltage regulation modules (VRMs).
• Power bypass and decoupling circuits.
• Switching DC-DC converters.
• Buck converters.
• Buck-Boost converters.
• High-frequency switching power supplies.
• Telecommunication equipment.
• Industrial electronic systems.
• Automotive electronic control units.
• Consumer electronic devices.

Conclusion

Polymer capacitors have become one of the most reliable alternatives to conventional electrolytic capacitors due to their low ESR, long lifespan, compact size, and excellent electrical performance. Their ability to withstand high ripple currents and maintain stable capacitance makes them ideal for modern power electronics, computing systems, telecommunications, and industrial applications. As electronic devices continue to demand greater efficiency and reliability, polymer capacitors remain a preferred choice for high-performance circuit designs.
