Introduction

A stepper motor driver is an essential electronic device that provides the required voltage and current to operate a stepper motor accurately and efficiently. Stepper motors rotate in discrete steps, making them ideal for applications that require precise positioning and speed control. The motor driver receives pulse signals from a microcontroller and converts them into the appropriate electrical signals needed to drive the motor.

A stepper motor driver is a critical component that supplies the necessary voltage and current for the smooth operation of a stepper motor. Unlike conventional DC motors, stepper motors rotate in fixed angular increments or steps. When designing a stepper motor control system, selecting the appropriate power supply, microcontroller, and motor driver is essential. Although a microcontroller generates control signals, the motor driver handles the voltage and current requirements of the motor.

ADVERTISEMENT

A single motor driver board can manage the required current and voltage levels for the motor. By synchronizing pulse signals from a controller, a stepper motor driver enables precise control of the motor’s position, speed, and direction.

What is a Stepper Motor Driver?

A stepper motor driver is an electronic circuit or device designed to control the operation of a stepper motor by regulating the motor’s current and voltage. It enables the motor to rotate continuously in precise increments without requiring a feedback system.

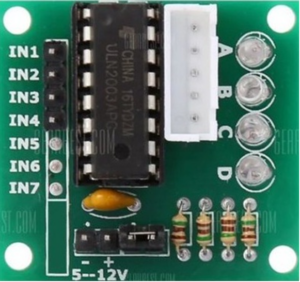

Motor-driver-ULN2003

Stepper motor drivers provide features such as variable current control, micro-stepping capability, and multiple step resolutions. Most modern drivers include built-in translators that allow motor control through simple STEP and DIRECTION input signals. These drivers are available in various voltage and current ratings to suit different motor specifications and applications.

Types of Stepper Motor Drivers

Stepper motor drivers are available in different types based on their design and operating characteristics.

• Unipolar Stepper Motor Drivers
• Bipolar Stepper Motor Drivers
• Chopper Drivers
• Micro-Stepping Drivers
• Integrated Driver Modules

Popular stepper motor driver ICs include:

• ULN2003
• A4988
• DRV8825
• L293D
• TB6600

These driver ICs are widely used in applications such as printers, cameras, CNC machines, robotics, and automation systems.

Stepper Motor Driver Working Principle

The primary function of a stepper motor driver circuit is to control the operation of a stepper motor by supplying pulsed current to the motor windings in a specific sequence. The driver receives pulse signals from a microcontroller or controller circuit and energizes the motor phases accordingly. This sequential energization causes the rotor to rotate in precise angular steps.

Earlier wave-driving methods were less efficient because they energized only one phase at a time, resulting in lower torque output. Modern stepper motor drivers use advanced control techniques such as full-step, half-step, and micro-stepping methods to improve efficiency, torque, and smoothness of operation. A typical stepper motor control system consists of:

• Microcontroller or controller
• Motor driver IC
• Power supply unit
• Switches and potentiometers
• Heat sink
• Connecting wires

Controller

The first step in designing a stepper motor driver system is selecting an appropriate microcontroller. The controller should have sufficient output pins to generate pulse sequences for the stepper motor. Modern microcontrollers often include additional peripherals such as:

• Analog-to-Digital Converters (ADC)
• Timers
• PWM modules
• Serial communication interfaces

These features simplify motor control and improve system performance.

Motor Driver IC

Motor driver ICs are inexpensive, easy to implement, and simplify the overall circuit design process. The selection of a driver depends on the motor’s voltage and current ratings. One of the most widely used stepper motor drivers is the ULN2003, especially for unipolar stepper motors.

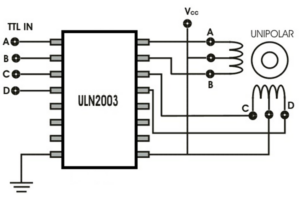

Motor-driver-circuit-diagram

This driver consists of multiple Darlington transistor pairs capable of handling currents up to 500 mA and voltages up to 50 VDC. Other commonly used motor driver ICs include A4988, DRV8825, and TB6600, which support advanced features such as current limiting and micro-stepping.

Power Supply

The operating voltage of a stepper motor typically ranges between 5V and 12V, while current requirements usually vary from 100 mA to 400 mA depending on the motor specifications. The power supply must be designed according to the motor’s voltage and current requirements to ensure stable torque and speed characteristics during operation.

Advantages of Stepper Motor Driver

• Supports battery-operated applications.
• Provides a safe and reliable design.
• Offers protection against electrical sparks.
• Includes thermal protection features.
• Requires minimal mounting space.
• Suitable for driving unipolar stepper motors.
• Reduces the need for expensive custom driver boards.
• Provides precise speed and position control.
• Supports various stepping resolutions.

Disadvantages of Stepper Motor Driver

• Some driver designs have lower efficiency.
• Requires multiple wiring connections for small applications.
• May require heat sinks for high-current applications.
• Advanced driver circuits can increase system cost.
• Performance depends heavily on proper driver selection.

Applications of Stepper Motor Driver

• Industrial automation systems.
• CNC machines.
• 3D printers.
• Robotics.
• Camera positioning systems.
• Medical equipment.
• Textile machinery.
• Packaging equipment.
• Printers and scanners.
• Brush DC motor control.
• Stepper motor control systems.
• Positioning and motion control applications.

Conclusion

A stepper motor driver plays a vital role in controlling the speed, position, and direction of stepper motors. By converting control pulses into regulated electrical signals, these drivers enable precise motor operation in various industrial and commercial applications. Due to their accuracy, reliability, and ease of control, stepper motor drivers are extensively used in automation, robotics, CNC machines, and precision motion control systems.
