Introduction

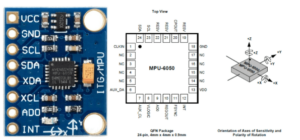

The MPU6050 is a Micro-Electro-Mechanical System (MEMS) sensor that combines a three-axis accelerometer and a three-axis gyroscope into a single module. It is capable of measuring acceleration, angular velocity, orientation, displacement, and motion.
The MPU6050 supports the measurement of velocity, orientation, and acceleration in all three dimensions. It includes an internal 16-bit Analog to Digital Converter (ADC) that allows the capture of precise motion data in real time.
Magnetometers and microcontroller-based systems can be easily interfaced with the MPU6050 through the I²C communication protocol. Due to this capability, it is widely used as a 6-axis motion tracking device in embedded and IoT applications.

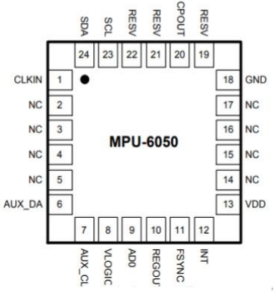

Pin Configuration of MPU6050
- Pin 1 – CLKIN: Optional external reference clock input. Connected to ground when not in use.
- Pins 2, 3, 4, and 5 – NC: These pins are not connected internally.
- Pin 6 – AUX_DA: I²C master serial data pin used for connecting external sensors.
- Pin 7 – AUX_CL: I²C master serial clock pin used for external sensor communication.
- Pin 8 – VLOGIC: Digital I/O supply voltage pin.
- Pin 9 – AD0: I²C slave address LSB pin.
- Pin 10 – REGOUT: Regulator filter capacitor connection pin.
- Pin 11 – FSYNC: Frame synchronization digital input pin. Connected to ground if not used.
- Pin 12 – INT: Interrupt digital output pin.
- Pin 13 – VDD: Power supply voltage pin.
- Pins 14, 15, 16, and 17 – NC: These pins are not connected internally.
- Pin 18 – GND: Power supply ground pin.
- Pins 19 and 21 – RESV: Reserved for internal use.
- Pin 20 – CPOUT: Charge pump capacitor connection.
- Pin 22 – RESV: Reserved pin.
- Pin 23 – SCL: I²C serial clock input.
- Pin 24 – SDA: I²C serial data input.
Key Features of MPU6050
- Integrated 3-axis accelerometer and 3-axis gyroscope
- High-resolution 16-bit ADC
- Low power consumption
- Digital I²C interface for easy communication
- Small form factor, ideal for portable devices
Applications of MPU6050
- Used in blur-free image and video stabilization systems
- Applied in navigation, security, and authentication systems
- Utilized in gesture recognition and motion command technology
- Used in mobile phones and portable gaming devices
- Employed in 3D remote controllers and 3D mice
- Used in panoramic photography and motion-controlled gaming
Conclusion
The MPU6050 is a highly versatile and powerful motion-sensing module. With its compact size, accurate measurement capability, and easy interfacing, it is widely used in robotics, drones, smartphones, gaming devices, and various IoT applications. It plays a vital role in modern motion-tracking technologies.
