Introduction

Smart antennas (also known as adaptive array antennas, digital antenna arrays, multiple antennas, or modern MIMO systems) are antenna arrays that use advanced signal processing algorithms to identify spatial signal characteristics such as Direction of Arrival (DOA). These algorithms help calculate beamforming vectors used to track, locate, and direct the antenna beam toward a user or target.

Smart antennas should not be confused with reconfigurable antennas, which provide similar functions but are based on a single radiating element instead of an antenna array.

Smart antenna technology is widely used in acoustic signal processing, radar tracking, radio astronomy, and cellular systems such as W-CDMA, UMTS, and LTE. Major functions of smart antennas include DOA estimation, beamforming, interference nulling, and maintaining constant modulus.

Classification of Smart Antennas

Smart antenna systems are a major research trend due to the significant improvements they offer over traditional omni-directional systems. According to IEEE, a smart antenna system is defined as “an antenna system with circuit elements associated with its radiating elements such that one or more antenna properties are controlled by the received signal.”

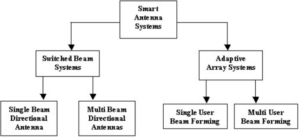

Smart antennas are broadly classified into two types:

• Switched Beam Systems
• Adaptive Array Systems

1. Switched Beam Systems

Switched beam systems use multiple predefined directional beams. The system switches between these beams to choose the one with the strongest signal.

Switched beam systems are further divided into:

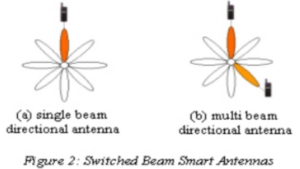

• Single Beam Directional Antennas – Only one beam is active at a time. Since there is only one transceiver, simultaneous transmissions are not possible.
• Multi-Beam Directional Antennas – Multiple beams exist, allowing simultaneous communication channels. This enables Spatial Division Multiple Access (SDMA).

2. Adaptive Array Systems

Adaptive arrays use DOA algorithms to continuously track users. They adjust radiation patterns to enhance the Signal-to-Interference Ratio (SIR) by placing nulls in the direction of interferers.

Adaptive beamforming is further divided into:

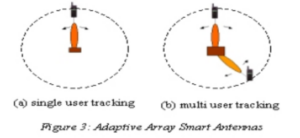

• Single-User Beamforming – One user is served at a time, requiring a single transceiver.
• Multi-User Beamforming – Multiple beams serve multiple users simultaneously, implementing SDMA.

The wireless broadcast nature is altered by smart antennas, affecting MAC protocols like 802.11 which rely on channel sensing. Actual throughput depends heavily on the MAC layer, and under ideal conditions, throughput can scale by N, where N is the number of spatial channels.

Smart Antenna Features

Smart antennas perform two major additional functions beyond basic transmission and reception:

1. Direction of Arrival (DOA) Estimation

The antenna array collects incoming signals and sends them to a signal processor that analyzes and determines the direction of the desired signal.

2. Beam Steering

Based on DOA information and interference analysis, the antenna adjusts its radiation pattern to maximize received signal strength and minimize interference.

Types of Smart Antennas

1. Switched Beam Smart Antennas

These antennas use multiple fixed beam patterns. The system selects the most suitable beam based on detected signal conditions. Although less flexible than adaptive arrays, they are simpler and efficient for many applications.

2. Adaptive Array Smart Antennas

These antennas dynamically steer beams in any direction to improve signal quality or cancel interference. They offer maximum flexibility and performance.

Advantages

• High efficiency and increased power in the direction of the desired signal
• Narrow pencil beams provide strong directivity at higher frequencies
• Adaptive arrays adjust beam patterns to overcome interference
• Improved Signal-to-Interference Ratio (SIR)

Disadvantages

1. Cost

• High cost due to complex electronics and increased power requirements
• MIMO-based systems increase hardware cost and power usage
• Multiple RF chains and A/D converters add significant cost

2. Size

• Large base stations are required for effective performance
• Multiple external antennas are needed on user devices
• Spatial limitations make it difficult to implement on mobile phones
• Dual-polarization methods are being explored to reduce antenna size

3. Diversity

Smart antennas require multiple mitigation strategies using spatial, polarization, or angular diversity.

• Spatial diversity is difficult for mobile devices due to limited spacing
• Polarization diversity helps reduce spacing issues
• Angular diversity selects signals from multiple beams depending on angular spread

4. Other Challenges

• Need for accurate user tracking
• Complex spatial-temporal signal processing
• Integration challenges with global standards
• Vertical integration requirements
