TCRT5000L 5-Channel Tracking Sensor Module – Working, Features, and Applications

Introduction

The TCRT5000L 5-Channel Tracking Sensor Module is a widely used infrared sensor module designed for line tracking and obstacle detection in robotics and embedded systems. It is commonly used in Arduino-based projects, especially for building line-following robots and automated vehicles.

This sensor module works on the principle of infrared reflection. It detects objects or surface colors by emitting infrared light and measuring the reflected light received by the sensor.

What is the TCRT5000 IR Sensor?

The TCRT5000 is a reflective infrared sensor that contains two main components inside a single package:

• IR Transmitter (Photodiode)
• IR Receiver (Phototransistor)

The IR transmitter emits infrared light with a wavelength of approximately 950 nm. When this light hits an object, it is reflected back and detected by the phototransistor receiver. The receiver includes a daylight filter to reduce interference from visible light, improving detection accuracy. The TCRT5000 package includes mounting clips, while the TCRT5000L version has longer leads for easier circuit connections.

Working Principle of TCRT5000 Sensor

The sensor operates based on the reflection of infrared light.

1. The IR LED (transmitter) emits infrared radiation.
2. If an object is placed in front of the sensor, the IR light reflects back.
3. The phototransistor receives the reflected IR light.
4. The output signal changes depending on the amount of reflected light.

The sensor output depends on:

• Distance of the object
• Color of the surface
• Surface reflectivity

For example, a white surface reflects more IR light, while a black surface absorbs IR light.

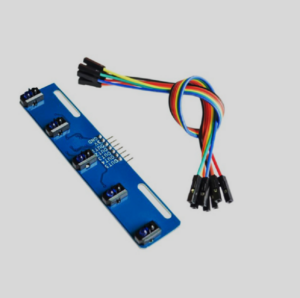

TCRT5000L 5-Channel Tracking Sensor Module

The TCRT5000L 5-Channel Tracking Module uses five infrared reflection sensors arranged in a line. It is mainly used for line tracking robots. Each sensor continuously emits infrared light. When the light reflects from a surface, the receiver detects the reflection and produces an output signal. By comparing the signals from all five sensors, a microcontroller can determine the position of the tracking line.

Pin Configuration

Features of TCRT5000L 5-Channel Sensor Module

• Compatible with Arduino, AVR, ARM, and PIC microcontrollers
• High-quality infrared tracking sensor
• Five evenly spaced IR transmitter and receiver pairs
• 15 mm spacing between each sensor
• Provides good resolution for line tracking
• Digital output interface for easy microcontroller connection
• 3 mm mounting holes for easy installation
• Each sensor includes a status LED
• LED indicator turns ON when a black line is detected

Applications of TCRT5000 Sensor

The TCRT5000 infrared sensor is widely used in robotics and automation systems.

• Line-following robots
• Obstacle detection systems
• Object detection applications
• Coin sorting machines
• Automatic guided vehicles (AGV)
• Industrial automation systems

In line-following robots, the sensor detects the difference between black and white surfaces. Since different colors reflect different amounts of infrared light, the robot can identify and follow a predefined path.

Advantages of TCRT5000 Sensor

• Low cost and easy to use
• Compact design
• Reliable object detection
• Suitable for microcontroller projects
• Fast response time

Conclusion

The TCRT5000L 5-Channel Tracking Sensor Module is an important component for robotics projects, especially for building line-following robots. Its infrared reflection technology allows it to detect surface differences, obstacles, and objects effectively. Due to its simple interface, compatibility with multiple microcontroller platforms, and reliable performance, the TCRT5000 sensor module is widely used in Arduino robotics projects and embedded systems.
