February 10, 2026

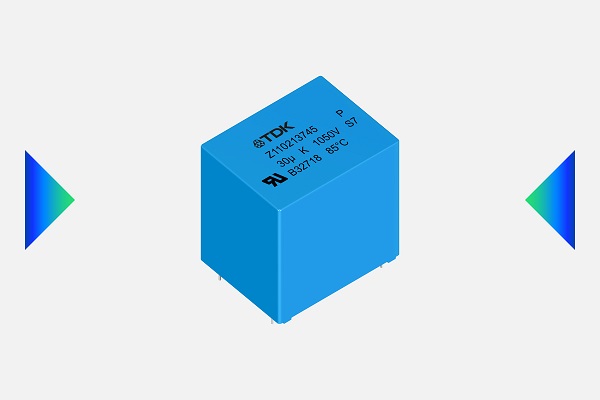

TDK Corporation (TSE: 6762) announces the B3271xP series of DC link film capacitors, offering high thermal robustness for demanding automotive and industrial power electronics. With a maximum operating temperature of +125 °C and no power derating up to +105 °C, the series ensures stable capacitance and reliable energy buffering even in tightly packed inverter environments. This performance is particularly relevant for xEV traction inverters, onboard chargers, and DC-DC converters, where elevated ambient temperatures and continuous ripple loads are common.
The B3271xP series covers capacitance values from 0.47 µF to 110 µF and rated DC voltages from 600 V to 1200 V, enabling flexible design-in for frequency converters, high-end industrial power supplies, and solar inverters. Its polypropylene (MKP) dielectric provides inherently low losses, high ripple current capability, and excellent self-healing behavior, maintaining efficiency and extending system lifetime under harsh electrical stress.
Engineered with a flame-retardant plastic case and epoxy sealing (UL 94 V-0), the components are available with lead spacings of 27.5 mm, 37.5 mm, and 52.5 mm, and in 2-pin or, on request, 4-pin configurations to support mechanical stability and low-inductance layouts. Typical ESR values down to the single-digit milliohm range and high current capability at 10 kHz contribute to robust DC link filtering and reduced thermal rise.
Compliant with AEC-Q200E and UL 810 (construction), the B3271xP series delivers the reliability expected in automotive platforms while supporting global industrial requirements. Its combination of high-temperature endurance, broad electrical performance, and compact dimensions helps engineers optimize converter designs for efficiency, stability, and long-term durability.
For the B3271xP series, TDK provides various SPICE model libraries and the web-based Capacitor Life And Rating Application (CLARA) tool.
Main applications
-
Frequency converters
-
Industrial and high-end power supplies
-
Solar inverters
Main features and benefits
-
High operating temperature of +125 °C
-
Power derating starting at +105 °C
-
High CV product, compact
-
Good self-healing properties
-
4-pin versions available on request
-
Over-voltage capability
-
Low losses with high current capability
-
High reliability
-
Long useful life
-
RoHS-compatible
-
UL 810 construction
-
AEC-Q200E compliant
