New Compact 1-Channel Interface Unit Enhances Precision in Fluxgate Current Measurement

Key points:

• Danisense introduces 1-channel power supply and interface unit for ultra-stable, high precision fluxgate technology current transducers

• 1V or 10V voltage output read-out through BNC connector

• +/-15V,1.2A DC supply output

• Universal mains input (110…220V AC)

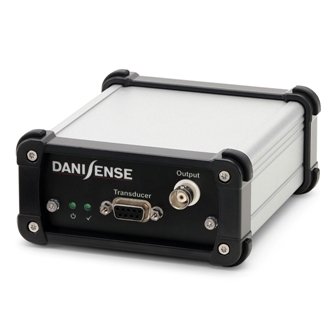

Taastrup, Denmark, June 2025…Danisense, the leader in high-accuracy current sense transducers for demanding applications, is introducing the DSSIU-1-V, a new low-noise power supply and interface unit designed to support a wide range of its flux gate current transducers (DCCTs). Featuring an industry-standard D-sub-9 connector, the DSSIU-1-V unit ensures reliable and straightforward interfacing.

The very compact device (only 130mm x 116mm x 56mm) is equipped with an integrated Voltage Output Module (VOM), which precisely converts the measured current into an easily accessible voltage output via a BNC connector. The DSSIU-1-V supports both 1V and 10V output options, enabling accurate and user-friendly current measurements. Powered by universal mains, it is the ideal solution if customers need to power only one transducer.

Comments Loic Moreau, Sales & Marketing Director at Danisense: “By offering such a voltage conversion, Danisense is simplifying the measuring chain by enabling its customers to have a direct connection of the transducer to instruments like e.g. an oscilloscope.”

Main target applications include flux gate DCCTs, hall effect DCCTs, electric vehicle (EV) test benches, power measurement and power analysis, current calibration purposes as well as precision current sensing.

For further information about Danisense’s new DSSIU-1-V system interface unit please click here.
