US Team Develops Quick Test For 2D Materials

Fast, non-destructive optical method uses fluorescent microscopy to analyse defects

A team of Penn State researchers has developed a fast, non-destructive optical method for analysing defects in 2D semiconductor materials.

To understand what is going on in a 2D material like WS₂, which has a single atom-thick layer of tungsten sandwiched between two atomic layers of sulphur, would usually equire a high-power electron microscope capable of seeing individual atoms and the holes where the atoms are missing.

“The benefit of transmission electron microscopy (TEM) is that you get an image and you can see directly what is going on – you get direct evidence,” said Bernd Kabius, staff scientist at Penn State’s Materials Research Institute, an expert in TEM and a coauthor on the paper, which appeared recently in Science Advances.

But the downsides are an increased possibility of damage to the delicate 2D material, the complex preparation required of the sample, and the time involved – an entire day of instrument time to image a single sample and a week or more to interpret the results.

For those reasons, and others, researchers would like to combine TEM with another method of looking at the sample that is simpler and faster.

The technique developed by Mauricio Terrones, professor of physics, materials science and engineering and chemistry, and his team uses fluorescent microscopy, in which a laser of a specific wavelength is shone on a sample.

The excited electrons, pushed to a higher energy level, each emit a photon of a longer wavelength when they drop down to a lower energy level. The longer wavelength can be measured by spectroscopy and gives information about the defect type and location on the sample. The team can then correlate the results with visual confirmation under the TEM. Theoretical calculations also helped to validate the optical results.

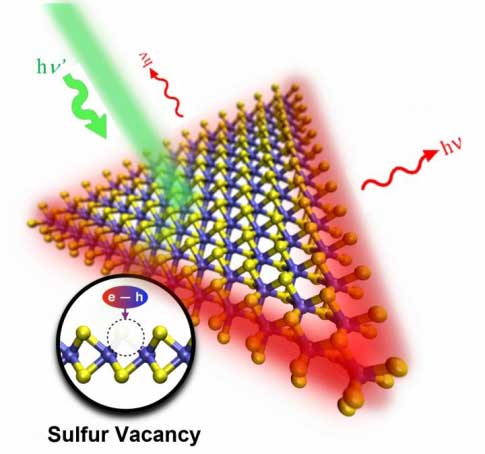

The sample must be placed in a temperature-controlled specimen holder and the temperature lowered to 77 Kelvin. At this temperature, the electron-hole pairs that produce the fluorescence are bound to the defect – in the case of this work a group of sulphur vacancies in the top layer of the sandwich – and emit a signal stronger than the pristine areas of the material.

“For the first time, we have established a direct relationship between the optical response and the amount of atomic defects in two-dimensional materials,” said Victor Carozo, former postdoctoral scholar in Terrones’ lab and first author of the work.

Terrones added, “For the semiconductor industry, this is a quick measurement, an optical nondestructive method to evaluate defects in 2D systems. The important thing is that we were able to correlate our optical method with TEM and also with atomistic simulations. I think this method can be very helpful in establishing a protocol for characterization of 2D crystalline materials.”

In this context, co-author Yuanxi Wang, a postdoc in the 2DLM and a theorist, added, “Our calculations show that electrons trapped by vacancies emit light at wavelengths different than the emission from defect-free regions. Regions emitting light at these wavelengths can easily identify vacancies within samples.”

Vincent Crespi, distinguished professor of physics, materials science and engineering and chemistry, Penn State, said “We can establish not just an empirical correlation between the presence of certain defects and modified light emission, but also identify the reason for that correlation through first-principles calculations.”

Device applications that could be enhanced by this work include membranes with selective pore sizes for removing salt from water or for DNA sequencing, gas sensing when gas molecules bind to specific vacancies and the doping of 2D materials, which is the addition of foreign atoms to enhance properties.
