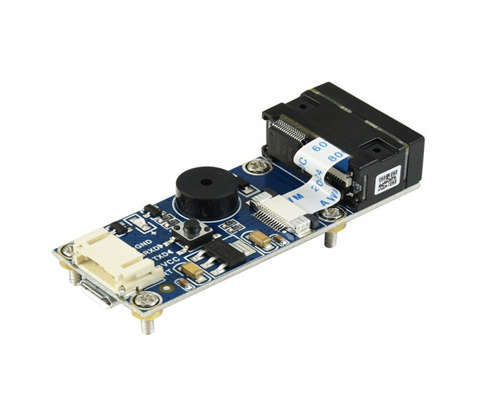

1D 2D Code Scanner Bar code Reader Module

• This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.
• Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated into kinds of devices due to its small form factor.

Features

• Easy to use, requires no knowledge of image recognition.
• Decodes various common 1D/2D codes such as barcodes, QR codes, etc.
• Onboard micro USB and UART serial port, allows connecting with computers or embedded devices.
• Configurable via scanning ‘configuration code’.
• Onboard light source, works in the dark.

Specifications

• Operating voltage: 5V
• Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
• Operating temperature: 0°C~60°C
• Operating humidity: 5%~95% (Non-condensing)
• Communication interface: UART, USB
• Decodes 1D codes: Code bar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Data bar(RSS).
• Decodes 2D codes: QR code, Data Matrix, PDF417
• Light source: white
• Scan angels: roll 360°, skew ±65°, pitch ±60°
• Field of view: 28° (horizontal), 21.5° (vertical)
• Dimension: 53.3mm x 21.4mm
