60 W Power-Only USB Type C Receptacle Features Vertical Orientation

LAKE OSWEGO, Ore. — July 13, 2021 — CUI Devices’ Interconnect Group today announced the continued expansion of their power-only USB Type C receptacle line with the introduction of a vertically-oriented model. The UJC-VP-3-SMT-TR joins the existing 60 W UJC-HP-3-SMT-TR and 100 W UJC-HP-G-SMT-TR , which both feature horizontal, surface mount packages. By removing the data transfer pins, these USB Type C receptacles are a more cost-effective solution for designs where charging or power is the sole function.

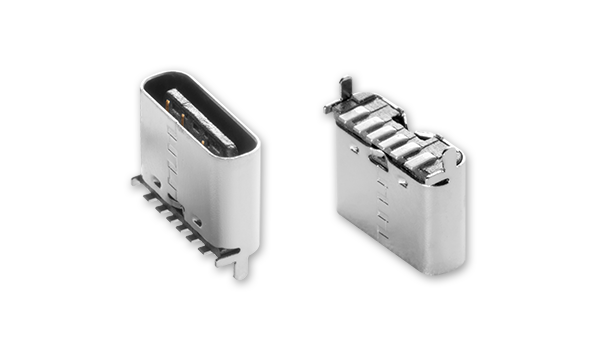

Housed in a vertical, surface mount package, the UJC-VP-3-SMT-TR is a 6-pin USB Type C receptacle that can deliver up to 60 W of power with a 3 A current rating and 20 Vdc voltage rating. This vertical mount power-only USB Type C model is compatible with any standard USB Type C plug, taking the accessibility and simplified design integration of the universal and widely adopted Type C connection and applying it to power-only applications. The UJC-VP-3-SMT-TR further offers high reliability up to 10,000 mating cycles, reflow solder compatibility, and an operating temperature range from -25 to 85°C.

The UJC-VP-3-SMT-TR is available immediately with prices starting at $0.40 per unit at 1000 pieces through distribution. Please contact CUI Devices for OEM pricing.

For helpful resources and tools on connectors, check out our Resource Library that houses a range of blog posts, videos, and more.

Summary

Product name: UJC-VP-3-SMT-TR

Availability: Stock to 10 weeks

Possible users: Charging or power-only applications

Primary features: Vertical power-only USB Type C receptacle, compatible with any USB Type C plug

Cost: $0.40 per unit at 1000 pieces through distribution
