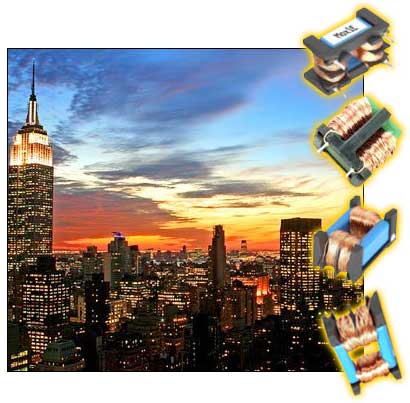

New Yorker Electronics Releases Moxie Current Compensated Frame Core Power Line Chokes

Lighting New Moxie Inductor Series to be Distributed Globally for Lighting Ballasts, Switch Mode Power Supplies and Industrial Electronics Applications

NORTHVALE, New Jersey, USA – New Yorker Electronics has announced the distribution of Moxie Inductor’s new Current Compensated Frame Core Power Line Chokes. The new ROHS-compliant device is vertically mounted and supplies high inductance with a low resistance. They are available in four new series’ with varying rated currents.

Rated voltage for all four series is 250VAC maximum at 40°C. The operating temperature range is -25°C to +85°C with industrial temps available on request. These power line chokes are ideal in Lighting Ballasts, Switch Mode Power Supplies and Industrial Electronics applications.

The Moxie MOX-FCC-2413 Double Choke Series has a rated current of 0.29~2.93A and available inductance values of between 10mH and 100mH with a DCR from 285 to 2,920mΩ. The MOX-FCC-2323 Double Choke is rated between 1.55~4.05A. Its inductance values range between 2.20mH and 25mH and the DCR ranges from 65 to 295mΩ.

The MOX-FCC-1314 Series is also on the list of new Power Line Double Chokes. It has a rated Current between 0.45~1.60A, an inductance value between 10 and 100mH and a DCR between 285 and 2,920mΩ. Moxie’s MOX-FCC-2915V Choke Series, rated between 0.70~2.30A, also has an inductance value between 10 and 100mH with a DCR of betw185 and 1,805mΩ. All four series are available in bulk or tray packaging.

MoxiE Inductor Corporation is a direct source for inductors, chokes, coils, LAN magnetics and transformers. New Yorker Electronics is a franchise distributor of MoxiE Inductor Corporation and supplies its full line of High Current, Shielded and Unshielded, Laser Cut Chip, Ceramic Chip, Ferrite Chip and Power Inductors; SMD and Through-Hole USB Connectors; RJ45 Connectors, Radial Leaded Toroids, Radial Power Line and Common Mode Chokes and more.

Features & Benefits:

• Current-compensated frame core double choke
• High inductance with low resistance
• RoHS Compliant
• Current Rating up to 4.05A
• Rated voltage: 250VAC maximum @ 40°C.
• Operating Temperature Range: -25°C to +85°C
• Bulk or Tray Packaging
• Industrial Temps Available

Applications:

• Lighting Ballasts
• Switch Mode Power Supplies
• Industrial Electronics
