Quad Bilateral Switch IC: Pin Diagram, Functions, and Working Explained

Introduction

A quad bilateral switch IC is an electronic component that contains four independent analog switches. These switches allow signals to pass in both directions when enabled, making them highly useful in analog signal processing applications.

Pin Configuration

Pin Number	Pin Name	Description
1, 4, 8, 11	IN/OUT SIG A, B, C, D	Input/Output pins for switches A, B, C, and D
2, 3, 9, 10	OUT/IN SIG A, B, C, D	Output/Input pins for switches A, B, C, and D
7	Vss	Ground of the circuit
14	Vdd	Power supply voltage
5	CONTROL_B	Control input for Switch B
6	CONTROL_C	Control input for Switch C
12	CONTROL_D	Control input for Switch D
13	CONTROL_A	Control input for Switch A

Working Principle

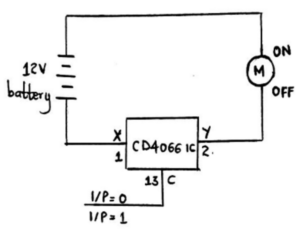

The quad bilateral switch IC operates based on control signals applied to its control pins. Each switch (A, B, C, and D) can be independently turned ON or OFF using its respective control input.

When a control input is HIGH, the corresponding switch is turned ON, allowing signals to pass between the input and output pins.
When a control input is LOW, the switch is turned OFF, blocking the signal path.

Since the switches are bilateral, signals can flow in either direction through the switch when it is ON.

Key Features

Four independent analog switches in a single IC
Bidirectional signal flow capability
Controlled using digital logic signals
Low power consumption
Suitable for analog and digital applications

Applications

Signal routing and multiplexing
Analog switching circuits
Sample and hold circuits
Audio signal switching
Data acquisition systems

Conclusion

The quad bilateral switch IC is a versatile component widely used in electronic circuits for switching and signal control. Its ability to handle bidirectional signals and operate with simple control inputs makes it ideal for various communication and signal processing applications.
