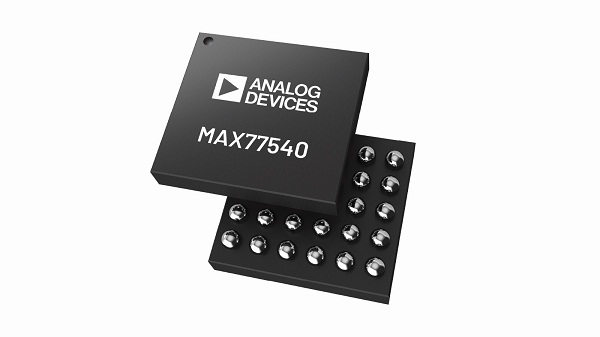

WILMINGTON, Mass. – Jan. 31, 2022 – Analog Devices, Inc. (ADI) today introduced the MAX77540 step-down buck converter, which provides single stage power conversion in multi-cell battery applications, such as augmented reality/virtual reality (ARVR) headsets, land mobile radios (LMRs) and digital single-lens reflex (DSLR) cameras. The power-dense MAX77540 buck converter features 94 percent peak efficiency and wafer level packaging that measures 61 percent smaller than traditional quad flat no-lead packages.
- Download data sheet, order samples and evaluation boards: https://bit.ly/MAX77540Product
Multi-cell battery applications require two stage power conversion and long battery life in the smallest package possible. Traditional methods, such as using a front-end converter to step down to 5V or below, and subsequently, stepping down further to system level voltages, are inefficient and therefore impact the battery life of the system. This approach requires an additional converter, which often requires an inductor, ultimately driving a larger solution footprint and higher cost.
With the MAX77540, the design engineer can easily create either dual 3A or a single 6A output(s). Default power on configuration only requires two external resistors, and an I2C interface allows further control for advanced power management techniques. External frequency tracking and spread spectrum modulation provide low electromagnetic interference (EMI) power conversions for data sensing and processing equipment.
MAX77540 Buck Converter Key Features:
- Wide 4V to 16V input voltage range and two 3A switching phases provide single step conversions to core voltages from USB-C rails and 2S and 3S multi-cell batteries.
- Wafer level package measures 61 percent (2.5x) smaller than traditional quad flat no-lead packaging to fit in the most space-constrained applications.
- 94 percent peak efficiency measured at 7.4V to 3.3V extends battery life.
Availability and Packaging
|2.51mm x 2.31mm
30-bump wafer-level package (WLP)
