D880 Transistor : Pin Configuration & Its Applications

Mrudul Ramteke by Mrudul Ramteke
August 17, 2022
in Knowledge Base
0
  • The D880 Transistor is an NPN transistor manufactured in the TO-220 package. It is designed for audio frequency amplification purposes but it can be used for any general purpose applications that fall under its ratings. For example, it can be used as a switch and can drive a load of up to 3A, with that much output current this transistor is capable to drive motors, high-power transistors, relays, etc. Due to its low saturation voltage, it can also be used at the output of a wide variety of electronic platforms like Arduino and raspberry pi to drive a variety of loads.

D880 Transistor Pinout

  • Pin 1: Base : Controls the biasing of the transistor, used to turn ON or OFF the transistor.
  • Pin 2: Collector : Current flows in through collector , normally connected to load.
  • Pin 3: Emitter : Current Drains out through the emitter , normally connected to ground.
D880 Transistor Pinout

D880 Transistor Features

  • Package Type: TO-220
  • Transistor Type: NPN
  • Max Collector Current(IC): 3A
  • Max Collector-Emitter Voltage (VCE): 60V
  • Max Collector-Base Voltage (VCB): 60V
  • Max Emitter-Base Voltage (VEBO): 7V
  • Max Collector Dissipation (Pc): 30 Watts
  • Max Transition Frequency (ft): 3 MHz
  • Minimum & Maximum DC Current Gain (hFE): 60 – 300
  • Max Storage & Operating temperature should be: -55 to +150 Centigrade

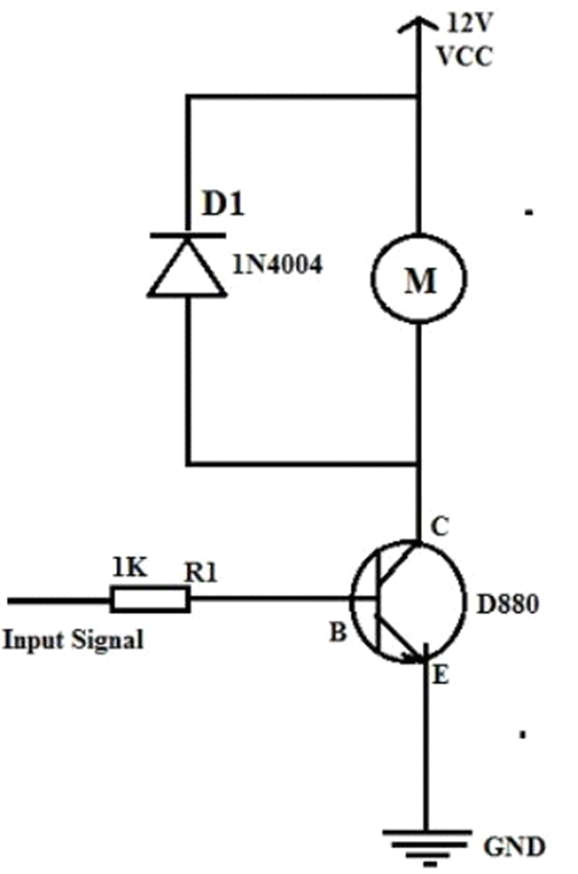

How to Use D880 Transistor

  • We can achieve stable performance in a circuit by employing the D880 transistor. It is recommended that you use less than 20% of your total maximum ratings for this. Because the maximum collector current (Cc) is 3A, it cannot drive any load that consumes more than 2.4A. The maximum voltage from collector to emitter terminal is 60V thus do not drive any load above 48V. A suitable heat sink must be used in conjunction with a transistor, and the transistor must be operated at temperatures between -55 and +150 degrees Celsius at all times.

Applications of D880 Transistor

  • DC-DC converts
  • Audio circuits
  • Amplifier circuits
  • Low voltage, medium current switching devices

Replacement and Equivalent

  • TIP31A, 2SC1060, 2SC1061, 2SC1173, 2SC1226, 2SC1226A, 2SC1418, 2SC1419, 2SC2236, 2SC2500, 2SC2075, 2SD1134, 2SD1274A, 2SC1985, 2SC1826, 2SC3179, 2SC3851A, 2SC3851, 2SC1986, 2SD1354, 2SD1274, 2SD234, 2SD235, 2SD313, 2SD314, 2SD317, 2SD318, 2SD325, 2SD330, 2SD331, 2SD365, 2SD389, 2SD390, 2SD762, BDT31, BDT31A, (Pin configuration of these equivalent transistor may be different from D880, therefore check pin configuration before replacing in your circuit.)
