Introduction
The AND gate is one of the most fundamental digital logic gates used in digital electronics. It performs a logical multiplication operation and produces a HIGH output only when all of its inputs are HIGH. AND gates are widely used in digital circuits, arithmetic logic units, control systems, and computer hardware.
An AND gate is a basic digital logic gate whose output depends on the state of all its inputs. The output becomes HIGH (Logic 1) only when every input is HIGH. If any one of the inputs is LOW (Logic 0), the output remains LOW. In Boolean algebra, the AND operation is represented by a dot (.) symbol, which denotes logical multiplication. The Boolean expression of a two-input AND gate is:
Q = A · B
This can be read as:
“If both A and B are TRUE, then Q is TRUE.”
Working Principle of an AND Gate
An AND gate continuously monitors all of its input signals. It produces a HIGH output only when every input is at Logic 1. If even one input changes to Logic 0, the output immediately becomes LOW. Because of this behavior, AND gates are commonly used wherever multiple conditions must be satisfied before an action is performed.
2-Input Transistor AND Gate

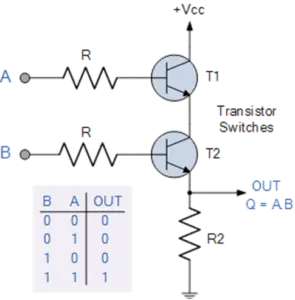

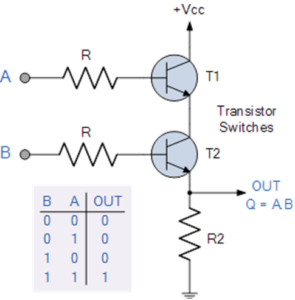

A simple two-input AND gate can be constructed using RTL (Resistor-Transistor Logic) by connecting transistor switches together.
In this circuit, both transistors must be fully switched ON (saturated) before the output becomes HIGH. If either transistor remains OFF, the output stays LOW.
2-Input AND Gate
Boolean Expression
Q = A · B
Truth Table
| A | B | Q (Output) |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
Read as: A AND B gives Q.
3-Input AND Gate
A three-input AND gate works on the same principle as a two-input gate. However, the output becomes HIGH only when all three inputs are HIGH simultaneously.
Boolean Expression
Q = A · B · C
Truth Table
| A | B | C | Q (Output) |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 1 | 0 | 0 | 0 |
| 0 | 1 | 0 | 0 |
| 1 | 1 | 0 | 0 |
| 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 1 | 1 | 1 |
Read as: A AND B AND C gives Q.
Multi-Input AND Gates
The AND operation is a binary operation, but multiple AND gates can be cascaded together to create gates with more than two inputs. Commercial integrated circuits are commonly available with 2-input, 3-input, and 4-input AND gates. When more inputs are required, multiple AND gates are connected together.

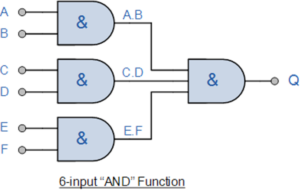

For example, a six-input AND gate can be implemented by cascading multiple AND gates.
Boolean Expression of a 6-Input AND Gate
Q = (A · B) · (C · D) · (E · F)
The output will be HIGH only if all six inputs are HIGH.
Advantages of AND Gates
- Simple circuit design.
- Fast switching operation.
- High reliability.
- Easy implementation in integrated circuits.
- Supports cascading to create multiple-input logic functions.
- Low power consumption in CMOS technology.
Disadvantages of AND Gates
- The output becomes LOW if any input is LOW.
- Cannot perform arithmetic operations independently.
- Complex circuits require multiple cascaded AND gates.
Applications of AND Gates
- Digital computers.
- Microprocessors and microcontrollers.
- Arithmetic Logic Units (ALUs).
- Control systems.
- Security and alarm circuits.
- Industrial automation.
- Memory circuits.
- Data processing systems.
- Digital communication equipment.
- Decision-making logic circuits.
Conclusion
The AND gate is one of the most essential logic gates in digital electronics. It performs logical multiplication by generating a HIGH output only when all input signals are HIGH. Due to its simple operation, reliability, and compatibility with integrated circuits, the AND gate is extensively used in computers, automation systems, digital controllers, and electronic devices.
