Have you ever wondered why your electronic devices don’t fry when you plug them in?

What are Voltage Regulators?

Voltage regulation is a process of maintaining a steady output voltage under given variations in input voltage or load current. This process maintains the proper functioning and long life of all components in electronics.

Key Components of Voltage Regulators

• Input capacitor: Filters input voltage fluctuations
• Voltage reference: Provides a stable reference voltage
• Error amplifier: Compares output voltage to the reference
• Pass element: Controls current flow to maintain desired output
• Feedback network: Monitors and adjusts output voltage
• Output capacitor: Smooths the output and improves transient response

How Voltage Regulators Work

The voltage regulator investigates output voltage while keeping a proper difference with the fixed value of reference voltage. On noticing the discrepancy, the feedback loop traces, by means of the pass element, through which the current passes; as a result, the voltage is transformed to give a non-fluctuating output. In a single feedback loop, the detected variable states the working type in realizing stable output where there may be a change in an input voltage or a load current. The values may circulate by following-the-internal regulator, yet the fundamental concept remains resting through varying equipment designs.

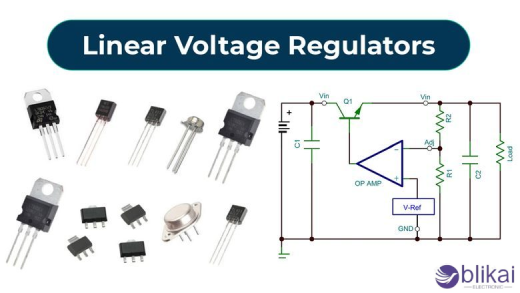

Linear Voltage Regulators

Linear voltage regulators are very often seen as some of the most basic devices in power supplies for electronic circuits; they provide a steady output voltage despite varying input voltage or load current. A linear regulator functions by dissipating the difference in input power and power into desirable output voltage; they thus combine simplicity with practical usages.

Series Regulators

A series regulator is arguably one of the simplest forms of a linear voltage regulator. They act by providing a series of current to the load, that is, a change in the resistance bestowed by these series regulators in such a way as to maintain an output voltage constant. The regulator continuously monitors the output voltage and adjusts the series element to compensate for any changes.

Shunt Regulators

Shunt regulators work differently from series regulators. They shunt excess current from the load to maintain a constant voltage. This is achieved by placing a variable resistance in parallel with the load. This method draws as much or as little current as necessary to maintain a constant voltage.

Advantages and Disadvantages

Linear voltage regulators have many advantages, such as simplicity. Low noise output and quick response to load changes. However, they are less efficient than control switches. Especially when there is a large difference between the input and output voltages. Because excess energy will be dissipated as heat.

Common Applications of Voltage Regulators

Linear regulators are often used in low-power applications where efficiency is less important. Ideal for noise-sensitive circuits such as audio equipment. precision measuring instruments and in analog circuits where clean and stable voltages are important.

Switching Voltage Regulators

Switching voltage regulators are more advanced and efficient alternatives to linear regulators. They operate by rapidly switching a power transistor between on and off states, effectively transferring energy in discrete packets.

A. Buck Converters

A buck converter is a step-down regulator that provides an affair voltage lower than the input voltage. They work in turn by turning the input voltage on and off to the inductor. This will make the resulting pulses smoother.

B. Boost Converters

In other words, a boost converter also indicates a step- up regulator where the affair voltage is lesser than the input voltage. Energy is stored in the inductor in the” on” state and also released in the” off” state, which causes the voltage to increase.

C. Buck-boost Converters

Buck-boost converter combines the features of buck and boost converter. It thus is capable of delivering an output voltage that can be higher or lower than the input. This makes it suitable for a number of applications with varying input voltages.

D. Advantages and Disadvantages

Switch controller provides higher efficiency. especially at higher currents and can support a wider range of input voltages. However, they are more complex. Might be louder and are generally more expensive than linear regulators.

E. Typical Use Cases

Switch controllers are generally used in battery-powered devices. High power applications and situations where efficiency is critical. Perform well where there is a large variation in input voltage or heat dissipation is at a premium.

Integrated Circuit (IC) Voltage Regulators

Fixed Output Regulators

The constant output voltage regulator IC is designed to provide a constant and preset output voltage. These regulators are often used in applications that require a specific and non-variable voltage. They offer simplicity and reliability, making them ideal for many electronic devices.

Adjustable Output Regulators

This is different from a fixed output controller. The adjustable output voltage regulator IC allows the user to set the desired output voltage within specified bounds, therefore giving room for several applications that might require various voltage levels. Normally, adjustable regulators use an external resistor to set the output voltage.

Low Dropout (LDO) Regulators

LDOs represent a class of linear voltage regulators with an extremely small input-to-output differential voltage, thus enabling high efficiency for battery-operated devices and applications where minimization of power losses is crucial. LDO regulators are particularly useful in portable electronics and automotive systems.

IC voltage regulators have several advantages over discrete component regulators. including small size Better reliability and built-in protection features These voltage regulators have become an essential component in modern power generation. This provides stable and efficient voltage control for a wide range of applications.
