Device Offers DCR Down to 8.6 mΩ and Rated Current to 14.3 A in 3.0 mm x 3.0 mm Footprint With 1.2 mm, 1.5 mm, or 2.0 mm Profile

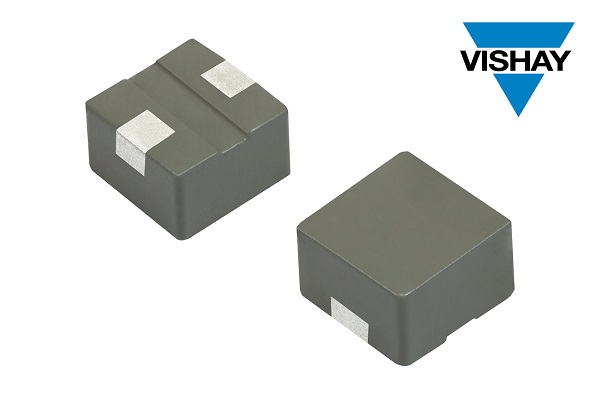

MALVERN, Pa. — April 15, 2026 — Vishay Intertechnology, Inc. (NYSE: VSH) today introduced a new IHLP® low profile, high current inductor in the compact 1212 case size. For space-constrained commercial applications, the Vishay Dale IHLP1212-EZ-1Z offers comparable electrical performance to larger devices in a compact 3.0 mm x 3.0 mm footprint with three profile options: 1.2 mm, 1.5 mm, and 2.0 mm.
The device released today is optimized for energy storage in low profile DC/DC converters for PMICs, power line noise suppression, and filtering. Applications for the inductor include industrial drives and tools; home and building control; computers and computer peripherals; consumer entertainment and healthcare devices; telecom equipment; and medical instrumentation.
Delivering high efficiency for these applications, the IHLP1212-EZ-1Z offers typical DCR from 8.6 mΩ to 50.4 mΩ and a wide range of inductance values from 0.22 µH to 3.3 µH. The inductor provides rated current to 14.3 A, operates over a temperature range of -55 °C to +125 °C, and handles high transient current spikes without saturation.
Offering improved performance over ferrite-based technologies, the IHLP1212-EZ-1Z features a robust powdered iron body that completely encapsulates its windings — eliminating air gaps and magnetically shielding against crosstalk to nearby components — while its soft saturation curve provides stability across the entire operating temperature and rated current ranges.
Packaged in a 100 % lead (Pb)-free shielded, composite construction that reduces buzz noise to ultra low levels, the inductor offers high resistance to thermal shock, moisture, and mechanical shock. The device is RoHS-compliant, halogen-free, and Vishay Green.
Device Specification Table:
|
Height (mm) |
1.2 |
1.5 |
2.0 |
|
Inductance (µH) |
0.22 to 1.0 |
0.22 to 1.5 |
0.22 to 3.3 |
|
DCR typ. (mΩ) |
8.6 to 29.4 |
8.6 to 36.9 |
8.6 to 50.4 |
|
DCR max. (mΩ) |
10.3 to 33.8 |
10.3 to 41.4 |
10.3 to 54.9 |
|
Heat rating current (A) (¹) |
6.1 to 11.1 |
5.5 to 11.1 |
4.5 to 11.1 |
|
Saturation current (A) |
5.1 to 9.5 (²) / 6.7 to 12.4 (³) |
5.0 to 11.0 (²) / 6.5 to 14.3 (³) |
3.7 to 10.5 (²) / 4.8 to 13.7 (³) |
|
SRF (MHz) |
66 to 185 |
51 to 202 |
30 to 214 |
(¹) DC current (A) that will cause an approximate ΔT of 40 °C
(²) DC current (A) that will cause L0 to drop approximately 20 %
(³) DC current (A) that will cause L0 to drop approximately 30 %
Samples and production quantities of the IHLP1212-EZ-1Z are available now, with a lead time of 10 weeks.
