What is a Slide Switch? Working Principle, Pin Configuration & Applications

Introduction

In compact electronics and embedded systems, controlling power or toggling between circuit modes within limited board space is a common design requirement. A slide switch is a mechanical switch that uses a linear sliding actuator to bridge or disconnect electrical contacts, regulating current flow within a circuit.

What is a Slide Switch?

A slide switch is a manually operated, maintained-contact switch that changes states when its knob or handle is pushed horizontally along a slide path. Unlike momentary switches that return to their original state when released, a slide switch remains securely in its selected ON, OFF, or multi-position state until manually moved again.

Because of their compact surface-mount (SMD) and through-hole (THT) form factors, slide switches are widely integrated into PCB power circuits, battery-operated consumer gadgets, network devices, and test equipment.

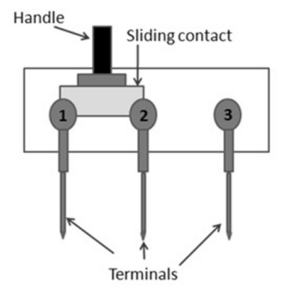

Slide Switch Pin Configuration (SPDT)

The most common slide switch configuration is a Single Pole Double Throw (SPDT) arrangement featuring three terminal pins:

Pin 1 (Output A): The first selectable output terminal connected to Load 1 or Signal Path A.
Pin 2 (Common / COM): The central input terminal where the incoming power source or logic signal is connected.
Pin 3 (Output B): The second selectable output terminal connected to Load 2 or Signal Path B (or left unconnected for a simple ON/OFF setup).

Internal Construction and Key Components

A slide switch consists of precision miniature parts that ensure consistent contact pressure and tactile position detents:

Slide Handle (Actuator Bar): The external raised or flat knob pushed by the user to select the switch state.
Sliding Contact Arm: A movable conductive leaf made of phosphor bronze or silver-plated alloy that slides across fixed base contacts.
Internal Spring & Seesaw/Detent Mechanism: A spring-loaded mechanism that creates a tactile “click” at each position and maintains constant pressure between contacts.
Stationary Terminal Pins: Silver- or gold-plated brass pins mounted into the insulating base to connect directly to PCBs or wiring harnesses.
Protective Frame / Case: A metal or high-temperature plastic outer shell protecting internal contacts against dust and mechanical stress.

Standard Technical Specifications

Parameter	Typical Specification Range
Max Operating Voltage	12V to 24V DC (Logic/Low-voltage circuits)
Contact Current Rating	200 mA at 12V DC / up to 500 mA max
Contact Resistance	< 50 mΩ
Insulation Resistance	> 100 MΩ at 500V DC
Dielectric Strength	500V AC (50 Hz) for 1 minute
Operating Temperature	-10°C to +60°C
Mechanical Lifespan	5,000 to 10,000 switching operations (Min)

Working Principle of a Slide Switch

The operating mechanism of a slide switch relies on linear mechanical displacement to change circuit paths:

Position 1 (COM to Output A): When the slider handle is pushed toward Pin 1, the internal sliding contact bridges COM (Pin 2) and Pin 1. Current flows through Output A, while Pin 3 remains electrically isolated.
Position 2 (COM to Output B): Shifting the handle toward Pin 3 slides the conductive arm across the base plate to bridge COM (Pin 2) and Pin 3. Power shifts to Output B, breaking the connection to Pin 1.
Maintained Contact: Internal detent notches hold the slider firmly in place, preventing unwanted toggling due to light vibrations or movement.

Comparison of Compact Circuit Switches

Switch Type	Actuation Style	Tactile Indication	Primary Use Case
Slide Switch	Horizontal linear slide	Visual slider position + light detent	PCB main power control, mode selection
DIP Switch	Array of tiny levers/sliders	Binary ON/OFF state per pin	Hardware configuration, address setting
Toggle Switch	Vertical lever flip	Strong mechanical snap & click	Panel control, high-current heavy machinery

Advantages and Disadvantages

Advantages:

Extremely Compact Footprint: Ideal for ultra-thin consumer gadgets and high-density PCB layouts.
Clear Visual Status: The physical position of the slider knob instantly reveals whether the switch is ON or OFF without needing power.
Low Energy Consumption: Operates purely as a mechanical bridge, consuming zero quiescent standby power.
Cost-Effective: Inexpensive to manufacture and easy to assemble via automated surface-mount (SMT) pick-and-place lines.

Disadvantages:

Mechanical Wear: Repeated sliding friction can cause contact degradation or loose detents over thousands of cycles.
Dust Ingress: Open slider slots can accumulate dust or moisture over time if unsealed.
Low Current Capacity: Limited primarily to signal switching and low-power DC applications (< 500 mA).

Applications of Slide Switches

Slide switches are widely deployed in consumer, industrial, and networking equipment:

Consumer Electronics: Power switches on Wireless earbuds cases, TV remote controls, Bluetooth speakers, and smartphones.
Networking Equipment: Hard reset switches and mode selectors on Wi-Fi routers, modems, and network switches.
Power Tools & Hardware: Speed setting and power locks on orbital sanders, handheld drills, and rotary tools.
Test & Measurement Rigs: Input voltage range switches (e.g., 110V/220V power supply selectors) and multimeter function modes.
Smart Home Devices: Wall thermostat controls, sensor configuration panels, and smart lighting hubs.
