XP Power launches 100W AC-DC power supplies for industrial, technology & medical devices, including BF

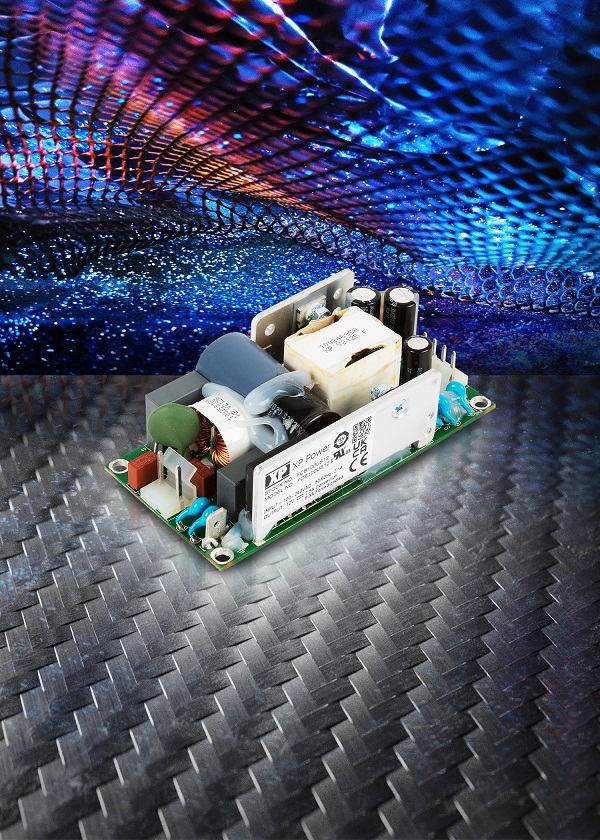

February 1, 2022 – XP Power introduces the FCB100 series of AC-DC power supplies. The series is certified to medical (including BF), ITE and household standards for Class I and II (no ground connection) operation. With Class B conducted and radiated emissions in both Class I & Class II configurations and supporting both convection & fan cooled applications the open frame modules are ideal for medical, home healthcare, test & measurement, broadcast, networking, communications, and other industrial equipment.

All models in the FCB100 series accept a wide operating input voltage range of 80 to 264VAC, supporting worldwide compatibility & home healthcare applications, and have a no-load power consumption of less than 0.3W. A choice of six standard output voltages is available: 12V, 15V, 19V, 24V, 36V, and 48VDC.

The FCB100 series operates in ambient temperatures from -25°C to +70°C. With external forced air cooling, the units deliver 100W at up to +50°C, derating linearly to 50W at +70°C. The units can be convection-cooled for low audible noise, delivering 80/85W at up to +50°C, derating linearly to 40/45W at +70°C depending on the model. The open frame models measure 101.6mm x 50.8mm x 31.8mm (4” x 2” x 1.25”) and weigh 160g (0.35lbs). In addition, the products include overvoltage, overload, short circuit, and overtemperature protection as standard.

The input to output isolation is 4,000VAC (2 x MOPP), input to ground 1,500VAC (1 x MOPP), and output to ground 1,500VAC (1 x MOPP) combined with low leakage current for suitability in BF rated medical devices. Safety certifications include IEC/ES/EN 60601-1, IEC/UL/EN 62368-1, IEC 60950-1, and IEC 60335. The products also comply with EN55035 & & IEC 60601-1-2 ed.4 EMC standards.

The FCB100 series are available from Digi-Key, Distrelec, Farnell, Mouser, RS Components, approved regional distributors, or direct from XP Power and offer a 3-year warranty.

For more information on the FCB100 series from XP Power, visit www.xppower.com/product/FCB100-Series
