What is Flash Memory: All Explained

Flash memory is secondary memory and is non-volatile, meaning it retains data even without an electrical supply. It operates on the principle of EEPROM (Electrically Erasable Programmable Read-Only Memory). Unlike ROM, which allows only one-time writing and multiple readings without erasure, Flash Memory can be erased and updated multiple times, offering flexibility for updating data or programs.

History of Flash Memory

Flash memory was developed by Dr. Masuoka Fujio and his team at Toshiba Corporation in the mid-1980s. This breakthrough in semiconductor technology led to significant advancements in devices such as digital cameras, camcorders, MP3 players, and audio/video equipment.

Features of Flash Memory

Non-volatile: Data is retained even without an electrical supply.

Solid-state: Being solid-state technology, it is faster than HDD-type storage.

Fast access times: With solid-state technology, it provides quicker access times.

Large storage capacity: Flash memory devices can store large amounts of data, from a few GB (Gigabytes) to several TB (Terabytes).

Low power consumption: Without mechanical components like HDDs, flash memory consumes less electricity.

Flexibility towards Erase and write operations: Flash memory can be electrically erased and rewritten multiple times, offering more flexibility for read/write operations.

How Does Flash Memory Work?

There are two main steps:

Writing data into flash memory: Flash memory consists of small memory cells made up of floating-gate transistors organized in an array. Data is stored as 0s and 1s by applying an electric supply to create a pattern in the memory cells. To erase data, an electrical impulse is used to reset all bits to 0.

Reading data from flash memory: By reading the 0s and 1s stored in the cells, data can be retrieved. Applying voltage to the transistor gate measures the current flow, which helps identify the bit stored in the cell.

Types of Flash Memory

NAND flash memory: Known for its high memory cell density, NAND flash memory is used in memory cards, USB drives, and SSDs. It has low power consumption and is made up of two gates: control gate and floating gate.

NOR flash memory: NOR flash memory uses FGMOS or FGMOSFETs (Floating Gate Metal Oxide Field Effect Transistors) and arranges its cells in a parallel manner, allowing faster reading speeds compared to other types.

3D flash memory: This newer type of flash memory has a higher memory cell density than NAND flash and is used in high-capacity SSDs.

Limitations of Flash Memory

Limited lifespan: Writing to flash memory using an electrical supply can eventually damage the hardware, thus limiting its lifespan.

Slower write speeds: Flash memory has slower write speeds compared to RAM, as writing data with electrical pulses takes more time.

Limited storage capacity: Although flash memory has a high storage density, it offers less capacity compared to some other memory devices like HDDs or tape drives.

Data corruption: Accidental power loss during data writing can lead to data corruption in flash memory.

Benefits of Flash Memory

Large storage capacity: With high memory density, flash memory can store a large volume of data.

High speed: Some flash memory features parallel architecture of memory cells, enabling faster read and write operations.

Persistent Data: Flash memory retains data without an electrical supply, similar to HDDs.

Low power consumption: Flash memory lacks mechanical components, leading to lower power consumption compared to HDDs.

Applications of Flash Memory

Used in SSDs: Flash memory enhances the speed of read/write operations in SSDs.

Embedded systems: Flash memory is used in embedded systems such as digital cameras, camcorders, and MP3 players.

Smartphones and tablets: Flash memory is a common component in smartphones and tablets.

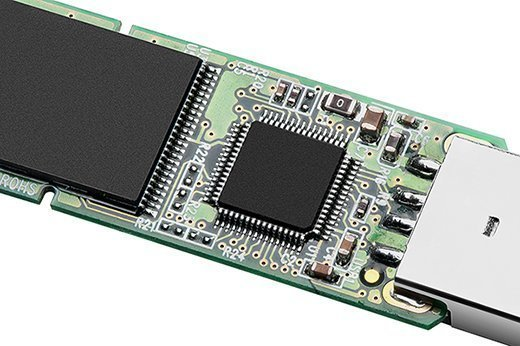

USB drives: Flash memory is widely used in USB drives.
